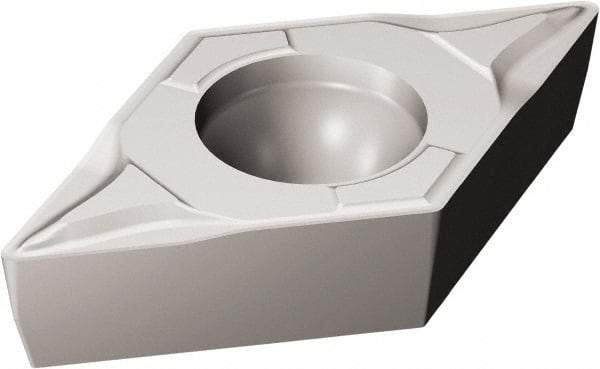

Sandvik Coromant - DCMT32.5 KF Grade H13A Carbide Turning Insert - Uncoated, 55° Parallelogram, 3/8" Inscr Circle, 5/32" Thick, 0.2mm Corner Radius
Item #: 54747753
Brand: Sandvik Coromant
Model #: 5730830
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DCMT |
| Insert Size | 32.5 |
| Material | Carbide |
| Length (mm) | 11.43 |
| Length (Decimal Inch) | 0.4499 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | KF |
| Insert Length (Decimal Inch) | 0.4499 |
| OverallLength (mm) | 11.63 |
| Overall Length (Decimal Inch) | 0.4578 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1563 |
| ISO Number | DCMT 11 T3 02-KF H13A |
| Relief Angle | 7 |
| Coating Process | Uncoated |
| Manufacturers Catalog Number | DCMT 11 T3 02-KF H13A |
| Primary Workpiece Material | K |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Maximum Depth of Cut (mm) | 11.43 |
| Maximum Depth of Cut (Decimal Inch) | 0.4499 |
| Insert Holding Method | Screw |
| Cutting Width (mm) | 11.43 |
| FullRadius | Yes |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Parallelogram |
