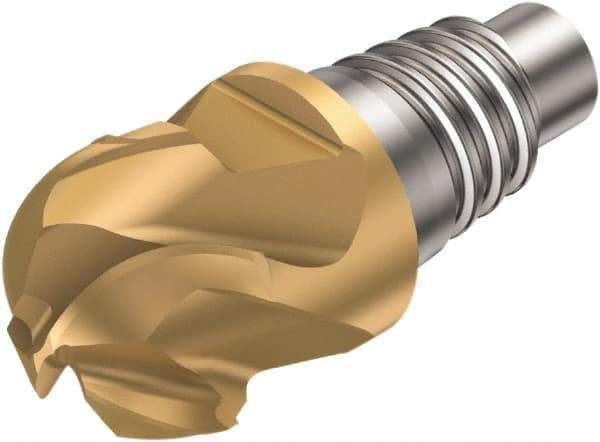

Sandvik Coromant - 316..BM..G Grade 1030 Carbide Ball Nose Milling Tip Insert - TiAlN Finish, 4 Flutes, 10mm Cutting Diam, 5.5mm Depth of Cut, 40° Helix
Item #: 54745914
Brand: Sandvik Coromant
Model #: 5758363
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | 316..BM..G |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 5.50 |
| Depth of Cut (Decimal Inch) | 0.2165 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Coating Process | PVD |
| Helix Angle | 40 |
| Style | 316..BM..G |
| Threads Per Inch | 0 |
| Manufacturers Catalog Number | 316-10BM440-10050G 1030 |
