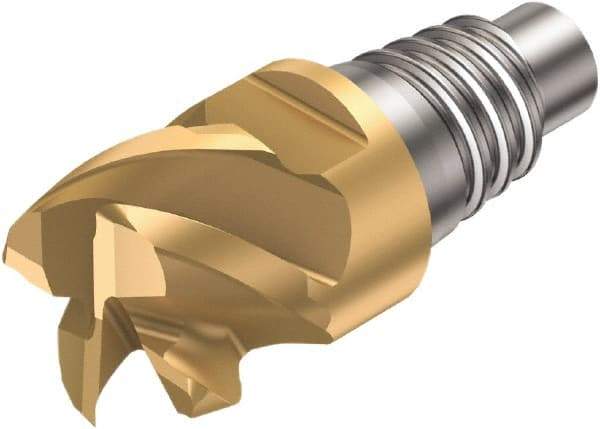

Sandvik Coromant - A316..SM..P Grade 1030 Carbide End Milling Tip Insert - TiAlN Finish, 5 Flutes, 25.4mm Cutting Diam, 14mm Depth of Cut, 1/4" Cnr Rad, 50° Helix
Item #: 54745880
Brand: Sandvik Coromant
Model #: 5856418
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | CoroMill 316 |
| Milling Tip Style | A316..SM..P |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Manufacturer's Grade | 1030 |
| Depth of Cut (mm) | 14.00 |
| Depth of Cut (Decimal Inch) | 0.5512 |
| Number of Flutes | 5 |
| Coating | TiAlN |
| Corner Radius (Decimal Inch) | 0.2500 |
| Coating Process | PVD |
| Helix Angle | 50 |
| Style | A316..SM..P |
| Threads Per Inch | 0 |
| Manufacturers Catalog Number | A316-25SM550-10063P 1030 |
