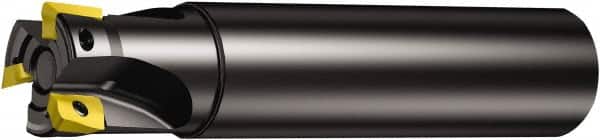

Sandvik Coromant - 3/8" Cut Diam, 5.8mm Max Depth of Cut, 3/8" Shank Diam, 60mm OAL, Indexable Square Shoulder Ramping End Mill - 390R-07.. Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series CoroMill 390
Item #: 54737374
Brand: Sandvik Coromant
Model #: 6851116
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.3750 |
| Cutting Diameter (Inch) | 3/8 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length/Projection (mm) | 60.00 |
| Overall Length/Projection (Decimal Inch) | 2.3622 |
| Lead Angle | 90 |
| Series | CoroMill 390 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 5.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.2283 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Ramping End Mill |
| Cutter Style | CoroMill 390 |
| Number of Flutes | 2 |
| Minimum Cutting Diameter (Inch) | 3/8 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3750 |
| Head Length (mm) | 15.00 |
| Head Length (Decimal Inch) | 0.5906 |
| Weldon Flat | No |
| Insert Compatibility | 390R-07.. |
| Shank Length (Decimal Inch) | 1.7716 |
| Maximum RPM | 56600 |
| Toolholder Material | Steel |
