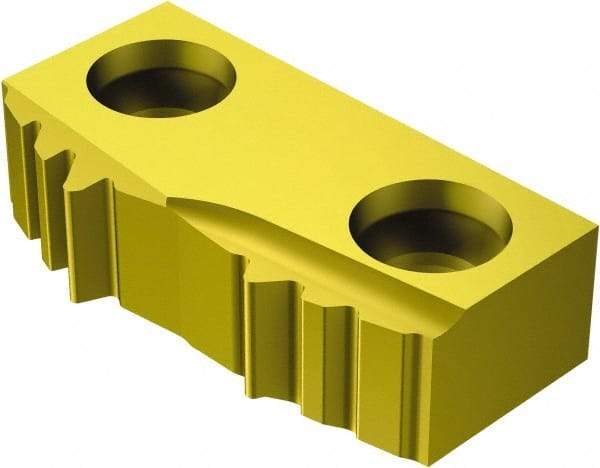

Sandvik Coromant - R166.39G..RD (M)24 Grade 4125, External UN Threading Insert - 8 TPI Ext Pitch, Right Hand Insert, TiAlN/TiN Finish, Carbide
Item #: 54736830
Brand: Sandvik Coromant
Model #: 5742303
Exact Tooling IR#: 04
Features and Benefits
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | R166.39G..RD (M) |
| Insert Size | 24 |
| Thread Type | External |
| Cutting Direction | Neutral |
| Insert Hand | Right Hand |
| Thread Standard | UN |
| Manufacturer's Grade | 4125 |
| External Pitch/TPI | 8 TPI |
| Coating | TiAlN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | R166.39G-24RD13-080 4125 |
| Thickness (mm) | 6.35 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Series | T-Max Twin-Lock |
| Included Angle of Threading Tip | 60 |
| Maximum Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Tip to Top of Insert (mm) | 6.35 |
| Tip to Top of Insert (Decimal Inch) | 0.2500 |
| Blade Height (mm) | 6.35 |
| Blade Height (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.8142 |
| Manufacturers Catalog Number | R166.39G-24RD13-080 4125 |
| Maximum Depth of Cut (mm) | 2.23 |
| Maximum Depth of Cut (Decimal Inch) | 0.0878 |
