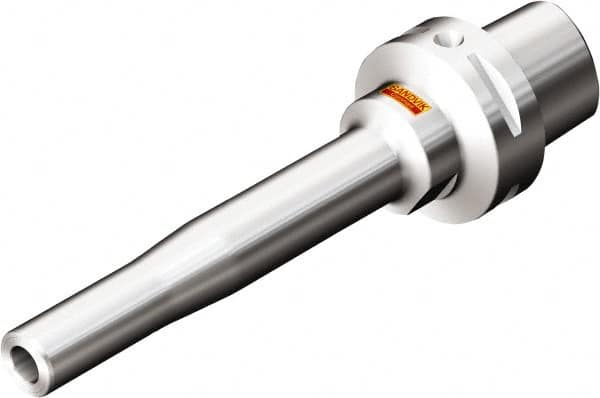

Sandvik Coromant - C6 Modular Connection, 12mm Hole Diam, Hydraulic Tool Holder/Chuck - 22mm Nose Diam, 192mm Projection, 41mm Clamp Depth, 20,000 RPM, Through Coolant
Item #: 54735899
Brand: Sandvik Coromant
Model #: 6255485
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C6 |
| Hole Diameter (Decimal Inch) | 0.4724 |
| Hole Diameter (mm) | 12.00 |
| Nose Diameter (Decimal Inch) | 0.8661 |
| Nose Diameter (mm) | 22.00 |
| Projection (Decimal Inch) | 7.5591 |
| Projection (mm) | 192.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 41.00 |
| Clamping Depth (Decimal Inch) | 1.4173 |
| Overall Length (mm) | 230.00 |
| Overall Length (Decimal Inch) | 9.0551 |
| Balanced to (RPM) | 20000 |
