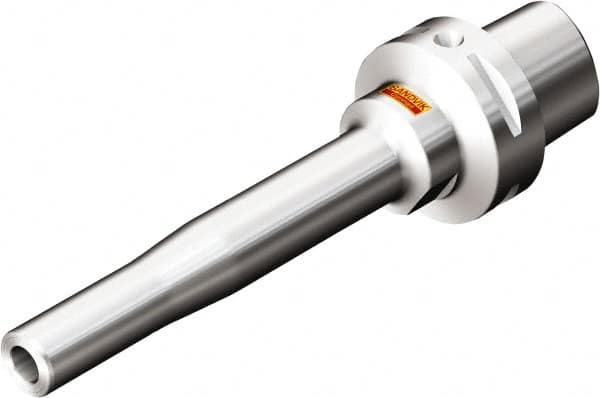

Sandvik Coromant - C5 Modular Connection, 20mm Hole Diam, Hydraulic Tool Holder/Chuck - 32mm Nose Diam, 231mm Projection, 47mm Clamp Depth, 28,000 RPM, Through Coolant
Item #: 54735113
Brand: Sandvik Coromant
Model #: 6255481
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Connection Size | C5 |
| Hole Diameter (Decimal Inch) | 0.7874 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| Nose Diameter (mm) | 32.00 |
| Projection (Decimal Inch) | 9.0945 |
| Projection (mm) | 231.00 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 47.00 |
| Clamping Depth (Decimal Inch) | 1.6142 |
| Overall Length (mm) | 261.00 |
| Overall Length (Decimal Inch) | 10.2756 |
| Balanced to (RPM) | 28000 |
