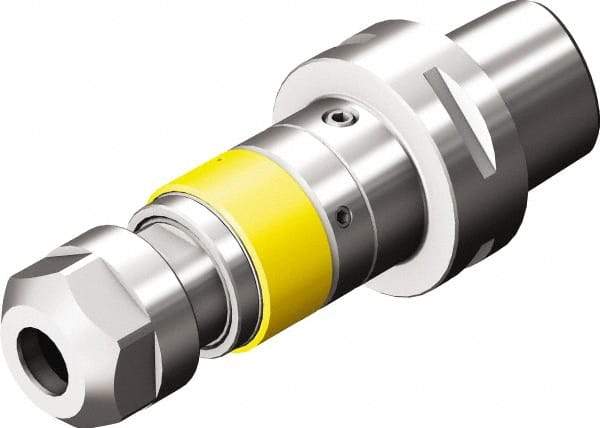

Sandvik Coromant - C4 Modular Connection Tapping Chuck/Holder - M4 to M12 Tap Capacity, 102.2mm Projection, Through Coolant
Item #: 54732557
Brand: Sandvik Coromant
Model #: 6412706
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single tap chucks to accept various tap shank diameters without changing machine tool holding set-ups.
| Product Specifications | |
|---|---|
| Shank Type | Modular Connection |
| Modular Connection Size | C4 |
| Minimum Tap Capacity (mm) | M4 |
| Maximum Tap Capacity (mm) | M12 |
| Projection (Decimal Inch) | 4.0236 |
| Projection (mm) | 102.20 |
| Hole Diameter (mm) | 20.80 |
| Hole Diameter (Decimal Inch) | 0.8189 |
| Collet System | ER Tap |
| Collet Series | ER20 |
| Nose Diameter (mm) | 33.70 |
| Nose Diameter (Decimal Inch) | 1.3268 |
| Overall Length (mm) | 126.20 |
| Overall Length (Decimal Inch) | 4.9685 |
| Through Coolant | Yes |
