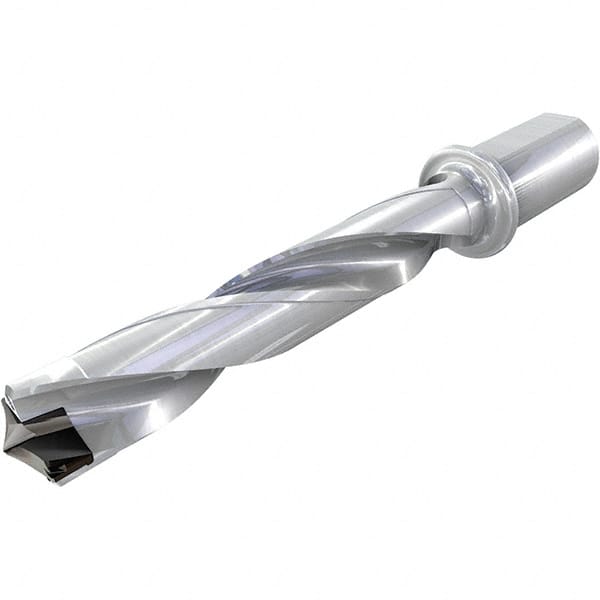

Replaceable Tip Drill: 1.496 to 1.531'' Drill Dia, 4.48″ Max Depth, 1.25'' Flatted Shank Uses HFP-IQ Inserts, 9.25″ OAL, Through Coolant
Item #: 54711569
Brand: Iscar
Model #: 3203401
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.4960 |
| Maximum Drill Diameter (Decimal Inch) | 1.5310 |
| Maximum Drill Depth (Decimal Inch) | 4.4800 |
| Shank Type | Flatted |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Compatible Insert Style | HFP-IQ |
| Overall Length (Decimal Inch) | 9.2500 |
| Series | SumoCham |
| Toolholder Style | DCN A-3D |
| Body Length (Decimal Inch) | 6.5700 |
| Shank Length (Decimal Inch) | 2.6800 |
| Tool Application | Holemaking |
| Standards | ISO 13399 |
| Coolant Through | Yes |
