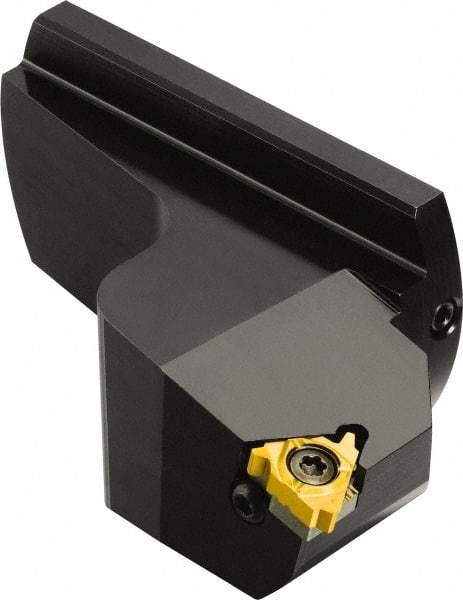

Sandvik Coromant - Insert Style SL-266R/LKF-QC, 45mm Head Length, Right Hand Cut, External Modular Threading Cutting Unit Head - System Size 80, 58.5mm Center to Cutting Edge, Series CoroThread 266
Item #: 54711270
Brand: Sandvik Coromant
Model #: 5962609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| System Size | 80 |
| Series Name | CoroThread 266 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Center to Cutting Edge (mm) | 58.50 |
| Center to Cutting Edge (Decimal Inch) | 2.3032 |
| Head Length/Projection (mm) | 45.00 |
| Head Length/Projection (Decimal Inch) | 1.7717 |
| Insert Style | SL-266R/LKF-QC |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Neck Diameter (mm) | 80.00 |
| Neck Diameter (Decimal Inch) | 3.1496 |
| Minimum Hole Diameter (mm) | 100.00 |
| Minimum Hole Diameter (Decimal Inch) | 3.9370 |
| Radial Rake Angle | -15 |
