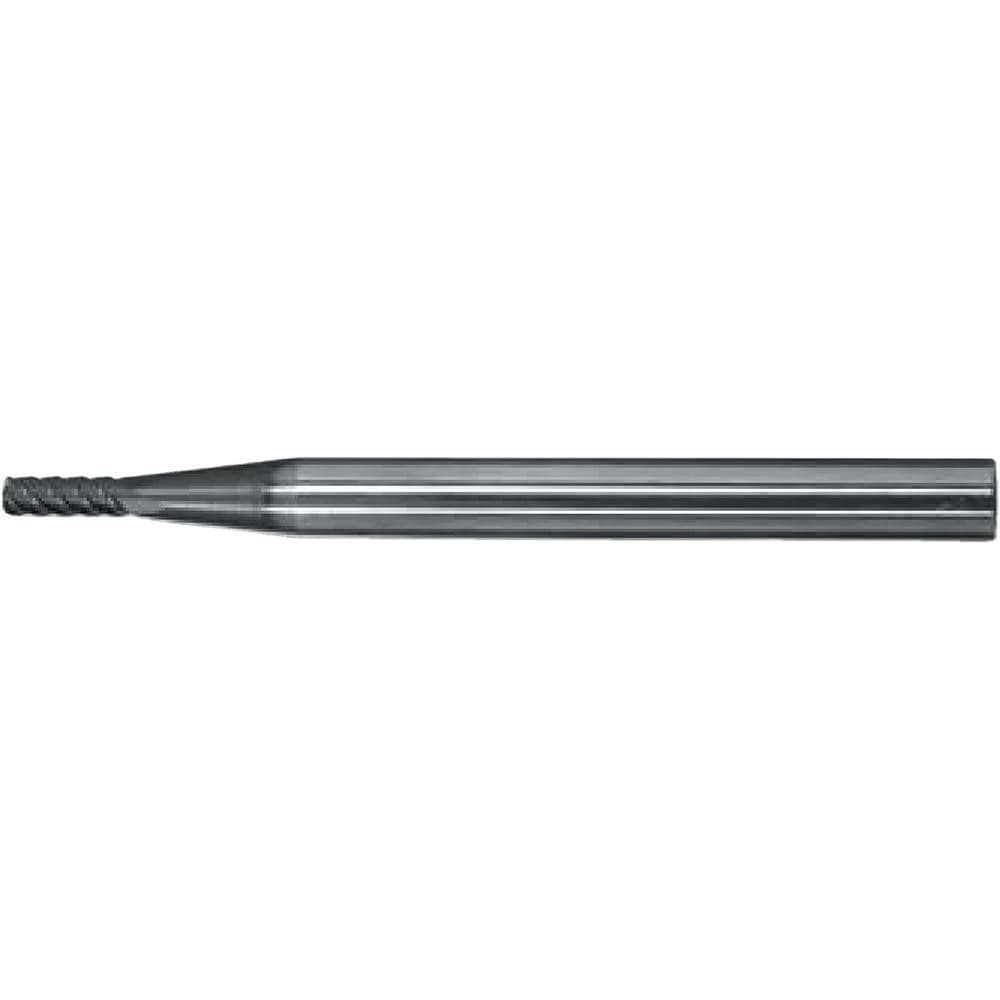

Corner Radius End Mill: 3 mm Dia, 9.00 mm LOC, 0.30 mm Radius, 5 Flute, Solid Carbide
Item #: 36833721
Brand: Millstar
Model #: EMB303EX
Product Specifications
| Mill Diameter (mm) | 3 |
| Number Of Flutes | 5 |
| Length of Cut (mm) | 9.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | AlTiN |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.30 |
| Overall Length (mm) | 75 |
| Coolant Through | No |
| Pitch | Close |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
| Length Type | Extended |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (mm) | 6 |
| Neck Diameter (mm) | 3.00 |
| Reach Length (mm) | 9.00 |
| Mill Diameter Tolerance | +0.00/-0.01 mm |
| Primary Workpiece Material | Hard Material; Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S; H |
| Series | EMB |
| Material Application | Hard Material; Tough Alloy |
| Coating Classification | PVD |
| Proprietary Coating Designation | EX |
| For Use With. | Toolholders |
| Manufacturers Catalog Number | EMB-3.0-0.3EX |
