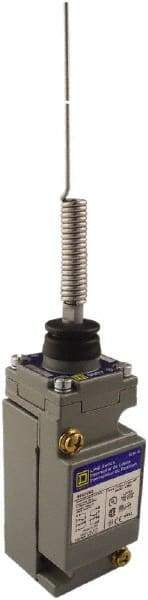

Square D - DPDT, 2NC/2NO, 600 Volt Screw Terminal, Cat Whisker Actuator, General Purpose Limit Switch - 1, 2, 4, 6, 12, 13, 6P NEMA Rating, IP67 IPR Rating
Item #: 54538061
Brand: Square D
Model #: 9007C62KM11
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Cat Whisker |
| Voltage | 600 V |
| Contact Form | DPDT |
| Contact Configuration | 2NC/2NO |
| Terminal Type | Screw Terminal |
| Material | Zinc |
| Amperage | 0.11 @ 250 VDC; 0.55 @ 125 VDC; 1.20 @ 600 VAC; 1.50 @ 480 VAC; 3 @ 240 VAC; 6 @ 120 VAC |
| Actuator Length (Decimal Inch) | 9.7000 |
| NEMA Rating | 1; 2; 4; 6; 12; 13; 6P |
| Ingress Protection Rating | IP67 |
| Travel (Degrees) | 10 |
| Maximum Operating Temperature (F) | 185 |
| Minimum Operating Temperature (F) | -20 |
| Overall Width (Decimal Inch) | 1.5500 |
| Overall Depth (Decimal Inch) | 1.7900 |
| Standards Met | IEC 60068-2-2; IEC 60068-2-27; IEC 60068-2-6; IEC 60529; IEC 61140; RoHS Compliant |
