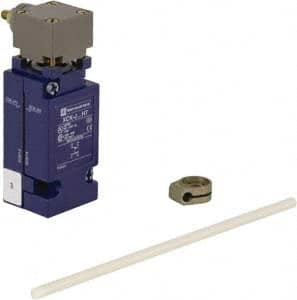

Telemecanique Sensors - SP, NC/NO, 600 VAC, Screw Terminal, Rod Lever Actuator, General Purpose Limit Switch - IP66 IPR Rating
Item #: 54536909
Brand: Telemecanique Sensors
Model #: XCKJ110559
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Rod Lever |
| Voltage | 600 VAC |
| Contact Form | SP |
| Contact Configuration | NC/NO |
| Terminal Type | Screw Terminal |
| Connection Type | Pg13 |
| Actuator Location | Side |
| Material | Zamak |
| Amperage | 0.27 @ 250 VDC; 10; 3 @ 240 VAC |
| Actuator Length (Decimal Inch) | 8 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Overall Width (mm) | 43 |
| Overall Depth (mm) | 36 |
| Standards Met | CENELEC EN 50041; CSA C22.2 No. 14; EN/IEC 60204-1; IEC 60529; UL 508; Utilization Category AC-15; Utilization Category DC-13 |
