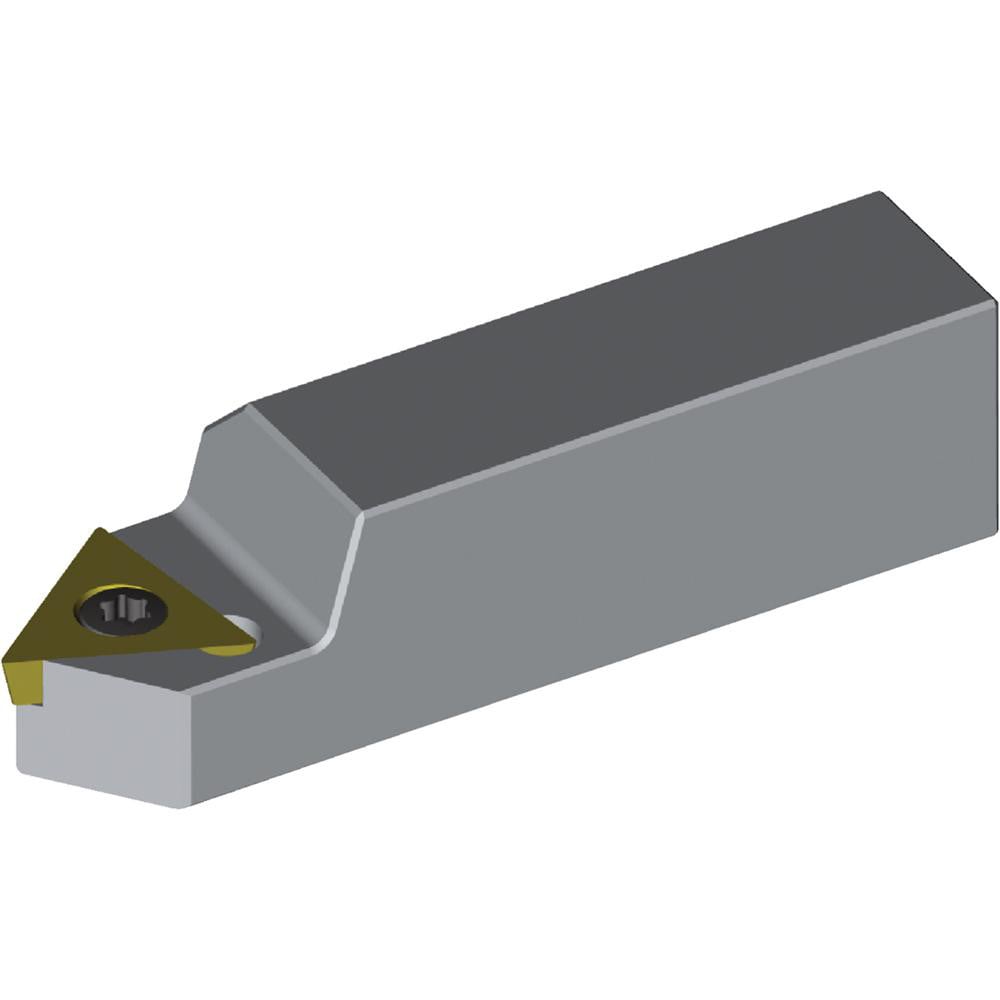

Brand: Widia / Part #: 2004141
Item #: 02775658
Brand: Widia
Model #: 2004141
Product Specifications
| Minimum Bore Diameter (mm) | 50.000 |
| Maximum Bore Depth (Decimal Inch) | 0.0000 |
| Toolholder Style | 12627 |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Hand of Holder | Neutral |
| Overall Length (mm) | 46.0000 |
| Compatible Insert Size Code | TC../TP..1102.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Triangle |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Neutral |
| Rake Angle | 0.000 |
| Lead Angle | 53.000 |
| Series | Precision Head Insert Holder T-Style |
| Insert Inscribed Circle (Inch) | 1/4 |
| Compatible Insert Thickness (Decimal Inch) | 0.0938 |
| Compatible Insert Thickness (mm) | 2.38 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Boring |
| Back of Bar to Cutting Edge (mm) | 0.00 |
| Center to Cutting Edge (mm) | 0.00 |
| Primary Workpiece Material | Universal |
| Multi-Use Application | Boring |
| Number of Inserts Used on Toolholder | 1 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Number of Inserts Included in Order | 0 |
| Manufacturers Catalog Number | 12627276800 |
| Shank Height (Decimal Inch) | 0.4724 |
| Radial Rake | 0 |
| Coolant Through | Yes |
