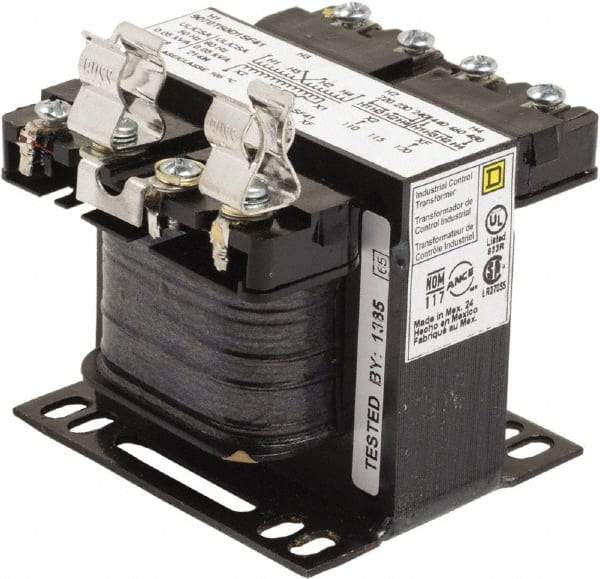

Square D - 50 VA, Top Mount Fuse Block Control Transformer - 50/60 Hz, 3.09 Inch Deep x 2.58 Inch High
Item #: 54526934
Brand: Square D
Model #: 9070T50D1SF41
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Power Rating (VA) | 50 |
| Input Voltage | 240/480 V |
| Output Voltage | 120 V |
| Frequency Rating (Hz) | 50/60 |
| Mounting Type | Panel |
| Fuse Location | Top Mount Fuse Block |
| Overall Width (Decimal Inch) | 3 |
| Overall Width (mm) | 76 |
| Overall Height (mm) | 66 |
| Overall Height (Decimal Inch) | 2.5800 |
| Overall Depth (mm) | 79 |
| Overall Depth (Decimal Inch) | 3.0900 |
| Standards Met | CSA File No. LR37055 Guide 184-N-90; cUL Listed; EN:947923 EN 61 558/01.89 (TUV Ref:00941-RAG/sg E9371495E01); ISO 9001; NOM; UL Listed File No. E61239 Guide XPTQ2 |
