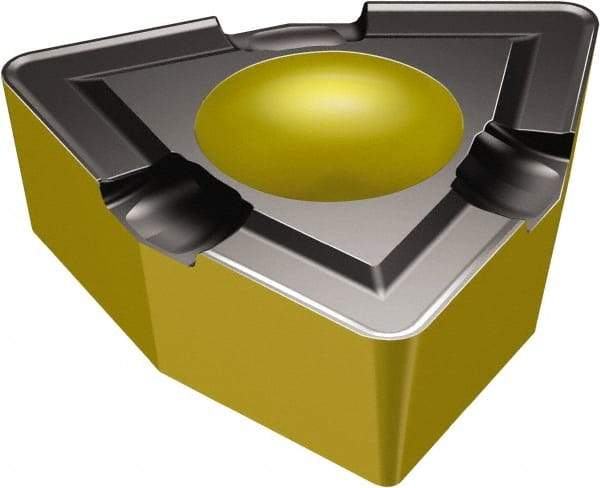

Sandvik Coromant - WCMX06T308 GM Grade H13A Carbide Indexable Drill Insert - Uncoated, Trigon, 3/8" Inscribed Circle
Item #: 54487558
Brand: Sandvik Coromant
Model #: 6251733
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 06T308 |
| Material | Carbide |
| Manufacturer's Grade | H13A |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Shape | Trigon |
| Length (mm) | 6.52 |
| Length (Decimal Inch) | 0.2567 |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Relief Angle | 7 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Chipbreaker | GM |
