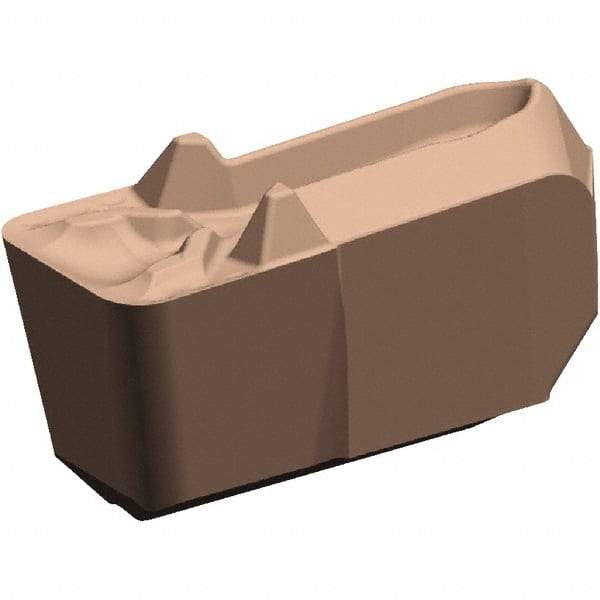

Kennametal - 2EG-P GUP Grade KCU10, 2.39mm Cutting Width Carbide Grooving/Cut-Off Insert - 1.74mm Max Depth of Cut, Neutral, 0.2mm Corner Radius, AlTiN Finish
Item #: 54463286
Brand: Kennametal
Model #: 6012710
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | EG-P |
| Insert Size | 2 |
| Material | Carbide |
| Cutting Width (mm) | 2.39 |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (mm) | 1.74 |
| Maximum Depth of Cut (Decimal Inch) | 0.0680 |
| Manufacturer's Grade | KCU10 |
| Coating | AlTiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 3.25 |
| Cutting Height (Decimal Inch) | 0.1280 |
| Insert Seat Size | 2 |
| Chipbreaker | GUP |
| Multi-Use Tool | No |
| Multi-Use Application | Grooving |
| Minimum Corner Radius (Decimal Inch) | 0.2000 |
| Maximum Corner Radius (Decimal Inch) | 0.0080 |
| Corner Radius (mm) | 0.2 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Coating Process | PVD |
| Overall Length (mm) | 8.88 |
| Overall Length (Decimal Inch) | 0.3500 |
| Series | Beyond Evolution |
| Rake Angle | 22 |
| Rake | Positive |
| Overall Width (mm) | 2.39 |
| Overall Width (Decimal Inch) | 0.0940 |
| Insert Thickness (Decimal Inch) | 0.1280 |
