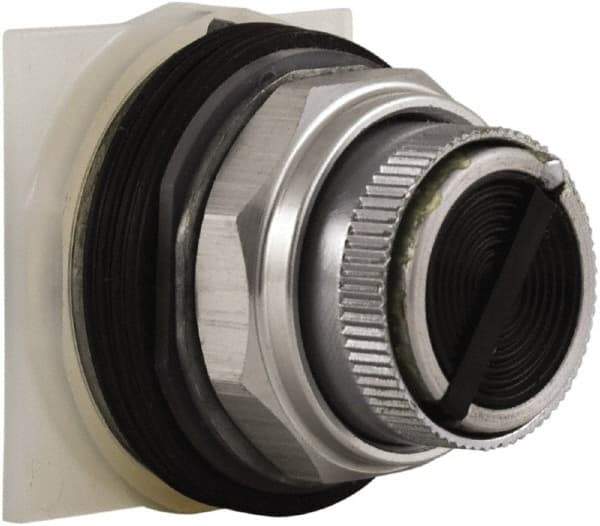

Schneider Electric - 30mm Mount Hole, Pushbutton Switch Only - Round, Black Pushbutton, Nonilluminated, Maintained (MA), Momentary (MO)
Item #: 54424643
Brand: Schneider Electric
Model #: 9001KQ11B
Exact Tooling IR#: 04
Features and Benefits
Pushbutton switches are designed with the front side of the switch outfacing on the panel. Used in conjunction with a contact block, these switches are designed to activate machinery by button that is pressed and released. Applications include starting and stopping the machine.
Nonilluminated pushbuttons do not feature a light within the button.They are commonly used in areas where added light is not needed.
| Product Specifications | |
|---|---|
| Mounting Hole Diameter (mm) | 30 |
| Switch Type | Pushbutton Switches Only |
| Pushbutton Shape | Round |
| Pushbutton Color | Black |
| Operator Illumination | NonIlluminated |
| Operation Type | Maintained (MA); Momentary (MO) |
| Pushbutton Material | Chromium Plated Metal (Bezel); Metal (Full Guard) |
| NEMA Rating | 1; 2; 3; 4; 6; 12; 13; 3R |
| Standards Met | CE Marked; CSA Certified File No. LR25490 Class 3211 03; UL Listed File No. E42259 CCN NKCR |
