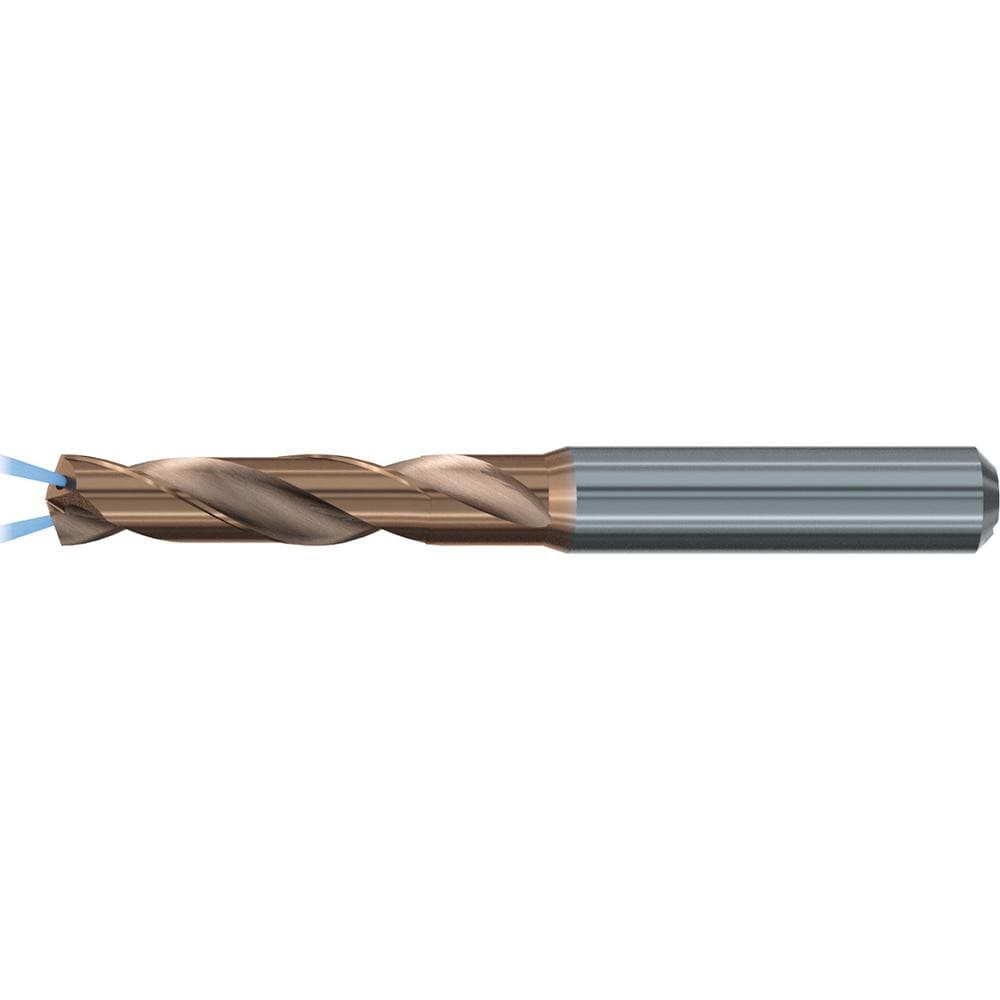

Screw Machine Length Drill Bit: 3.15 mm Dia, 140 deg Point, Solid Carbide
Item #: 02128007
Brand: Emuge
Model #: TA201724.0315
Product Specifications
| Drill Bit Size (mm) | 3.15 |
| Drill Bit Size (Decimal Inch) | 0.5833 |
| Tool Material | Solid Carbide |
| Coating/Finish | Proprietary |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 62.00 |
| Overall Length (Decimal Inch) | 11.4815 |
| Shank Diameter (mm) | 6.00 |
| Series | TA201724 |
| Proprietary Coating/Finish | ALCR-89 |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| UNSPSC Code | 23241635 |
