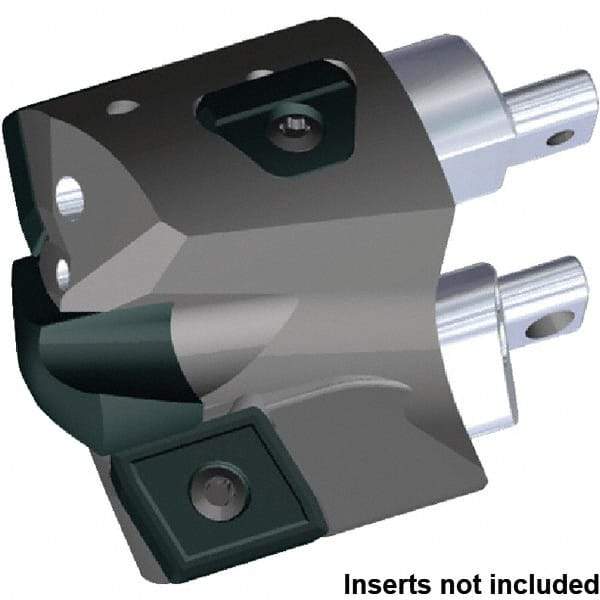

Kennametal - Series KSEM Plus, Head Connection FDS56, 60.33mm Max Diam Interchangeable Pilot Drill Head - KSEMP2400HPGM Pilot Drill, 24mm Pilot Drill Diam, 3 Nonpilot Inserts, 35mm Head Length
Item #: 54320494
Brand: Kennametal
Model #: 5116128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS56 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 60.33 |
| Maximum Drill Diameter (Decimal Inch) | 2.3750 |
| Pilot Drill Diameter (mm) | 24.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.9449 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP2400HPGM |
| Head Length (mm) | 35.00 |
| Head Length (Decimal Inch) | 1.3780 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Overall Length (mm) | 61.92 |
| Overall Length (Decimal Inch) | 2.4380 |
| Head Length to Pilot Tip (Decimal Inch) | 1.5840 |
| Head Length to Pilot Tip (mm) | 40.22 |
