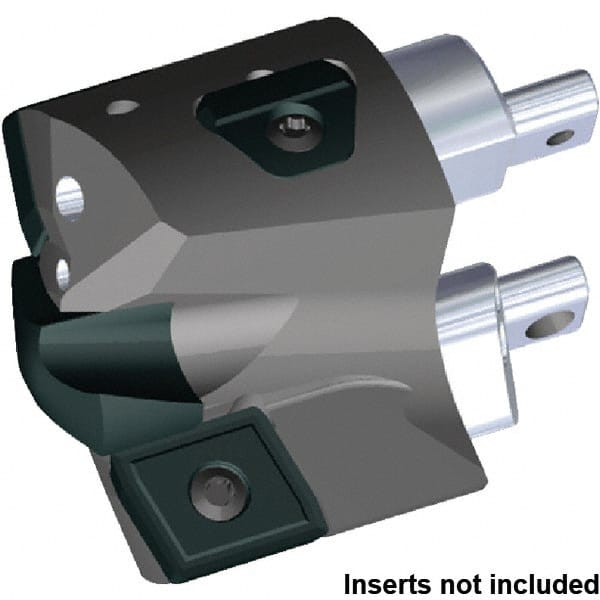

Series KSEM Plus, Head Connection FDS28, 29mm Max Drill Diam, Indexable Interchangeable Pilot Head KSEMP1500HPGM Pilot Drill, 15mm Pilot Drill Diam, Takes 3 Nonpilot Inserts, 25mm Head Length
Item #: 54320486
Brand: Kennametal
Model #: 5115738
Product Specifications
| Series | KSEM Plus |
| Head Connection Size | FDS28 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (mm) | 29.00 |
| Number Of Non-pilot Inserts Used | 3 |
| Pilot Drill Diameter (Decimal Inch) | 0.5906 |
| Pilot Drill Diameter (mm) | 15.00 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP1500HPGM |
| Head Length (Decimal Inch) | 0.9840 |
| Head Length (mm) | 25.00 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw; Clamp |
| Overall Length (mm) | 39.14 |
| Overall Length (Decimal Inch) | 1.5410 |
| Head Length to Pilot Tip (Decimal Inch) | 1.1110 |
| Head Length to Pilot Tip (mm) | 28.24 |
