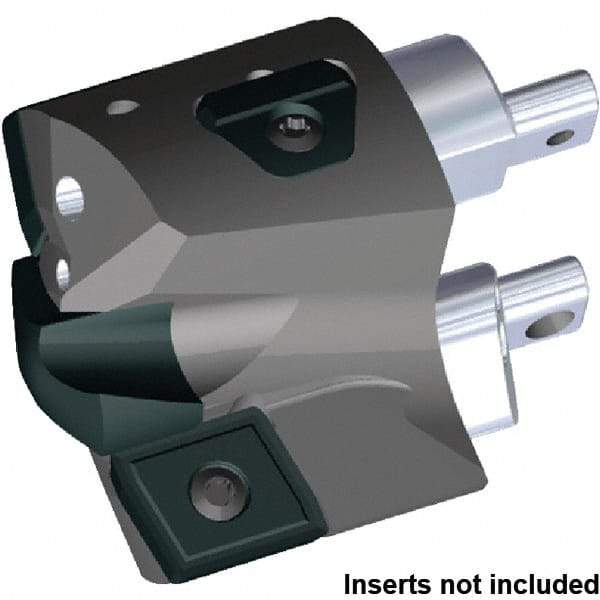

Kennametal - Series KSEM Plus, Head Connection FDS32, 34mm Max Diam Interchangeable Pilot Drill Head - KSEMP1700HPGM Pilot Drill, 17mm Pilot Drill Diam, 3 Nonpilot Inserts, 25mm Head Length
Item #: 54320445
Brand: Kennametal
Model #: 5116019
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS32 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 34.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.3390 |
| Pilot Drill Diameter (mm) | 17.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.6693 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP1700HPGM |
| Head Length (mm) | 25.00 |
| Head Length (Decimal Inch) | 0.9840 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Overall Length (mm) | 40.99 |
| Overall Length (Decimal Inch) | 1.6140 |
| Head Length to Pilot Tip (Decimal Inch) | 1.1250 |
| Head Length to Pilot Tip (mm) | 28.59 |
