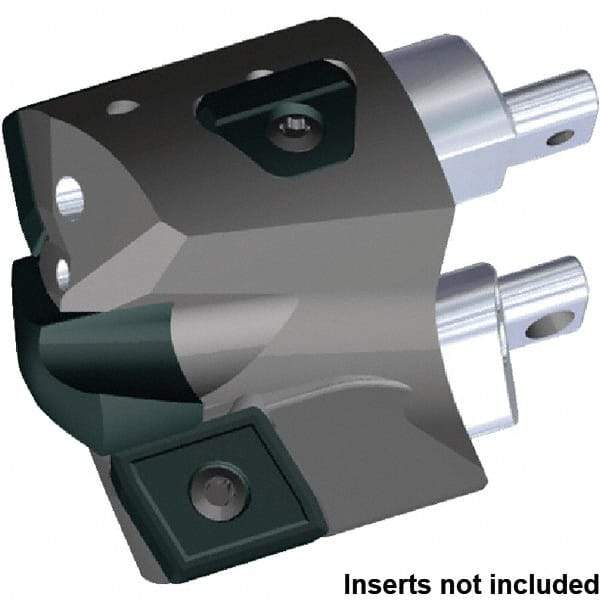

Kennametal - Series KSEM Plus, Head Connection FDS45, 49mm Max Diam Interchangeable Pilot Drill Head - KSEMP2200HPGM Pilot Drill, 22mm Pilot Drill Diam, 3 Nonpilot Inserts, 30mm Head Length
Item #: 54320320
Brand: Kennametal
Model #: 5116113
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | KSEM Plus |
| Head Connection Size | FDS45 |
| Pilot Type | Interchangeable Pilot |
| Maximum Drill Diameter (mm) | 49.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.9290 |
| Pilot Drill Diameter (mm) | 22.00 |
| Pilot Drill Diameter (Decimal Inch) | 0.8661 |
| Number of Non-Pilot Inserts | 3 |
| Pilot Drill Style | KSEMP2200HPGM |
| Head Length (mm) | 30.00 |
| Head Length (Decimal Inch) | 1.1810 |
| Drill Head Style | B1 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp; Screw |
| Overall Length (mm) | 52.07 |
| Overall Length (Decimal Inch) | 2.0500 |
| Head Length to Pilot Tip (Decimal Inch) | 1.3650 |
| Head Length to Pilot Tip (mm) | 34.67 |
