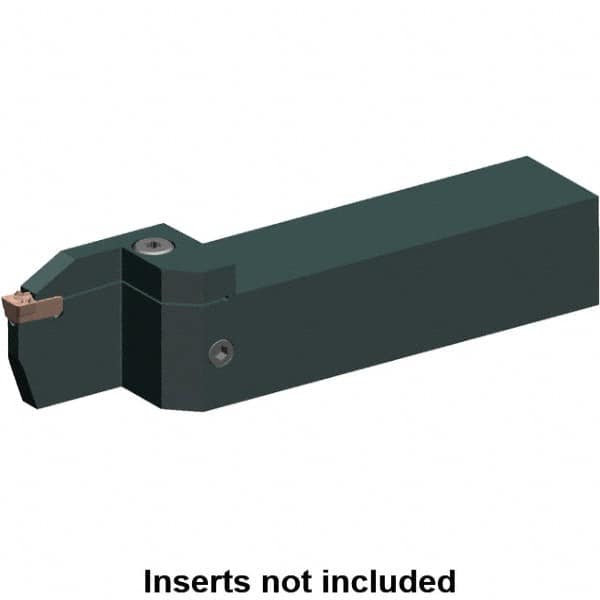

Kennametal - Right Hand Cut, 32mm Max Workpc Diam, EG0400M04P04 Insert, Indexable Cutoff Toolholder - 16mm Max Depth of Cut, 3/4" Shank Width, 3/4" Shank Height, 4-1/2" OAL
Item #: 54319892
Brand: Kennametal
Model #: 5939460
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0400M04P04 |
| Overall Length (mm) | 114.30 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Shank Width/Diameter (mm) | 19.05 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Height (mm) | 19.05 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Insert Seat Size | 4 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 3.45 |
| Insert Width (Decimal Inch) | 0.1360 |
| Head Height (mm) | 27.55 |
| Head Height (Decimal Inch) | 1.0850 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4570 |
| Shank Length (mm) | 77.30 |
| Shank Length (Decimal Inch) | 3.0430 |
| Blade Width (mm) | 3.45 |
| Blade Width (Decimal Inch) | 0.1360 |
| Complete Insert Compatibility | EG0400M04P04 |
