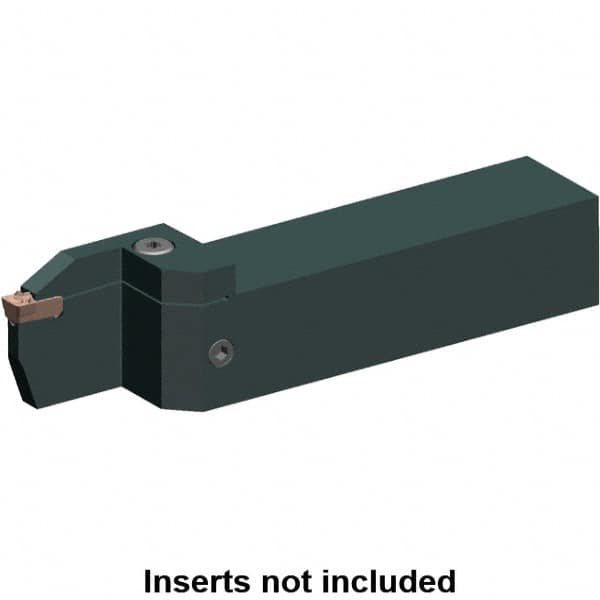

Kennametal - Left Hand Cut, 52mm Max Workpc Diam, EG0800M08P08 Insert, Indexable Cutoff Toolholder - 26mm Max Depth of Cut, 32mm Shank Width, 32mm Shank Height, 170mm OAL
Item #: 54319611
Brand: Kennametal
Model #: 5954216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0240 |
| Maximum Workpiece Diameter (mm) | 52.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.0480 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0800M08P08 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6930 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2600 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2600 |
| Insert Seat Size | 8 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 7.00 |
| Insert Width (Decimal Inch) | 0.2760 |
| Head Height (mm) | 42.50 |
| Head Height (Decimal Inch) | 1.6730 |
| Head Length (mm) | 49.00 |
| Head Length (Decimal Inch) | 1.9290 |
| Shank Length (mm) | 121.00 |
| Shank Length (Decimal Inch) | 4.7640 |
| Blade Width (mm) | 7.00 |
| Blade Width (Decimal Inch) | 0.2760 |
| Complete Insert Compatibility | EG0800M08P08 |
