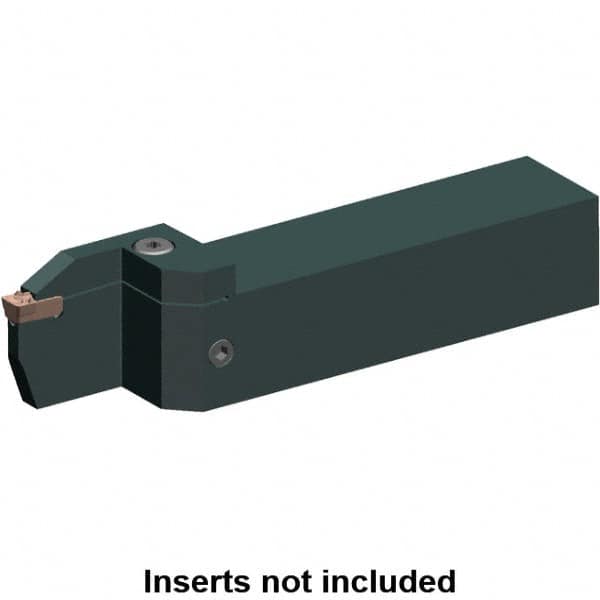

Kennametal - Left Hand Cut, 64mm Max Workpc Diam, EG0500M05P04 Insert, Indexable Cutoff Toolholder - 32mm Max Depth of Cut, 32mm Shank Width, 32mm Shank Height, 170mm OAL
Item #: 54319587
Brand: Kennametal
Model #: 5954219
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Workpiece Diameter (mm) | 64.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5200 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0500M05P04 |
| Overall Length (mm) | 170.00 |
| Overall Length (Decimal Inch) | 6.6930 |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Width/Diameter (Decimal Inch) | 1.2600 |
| Shank Height (mm) | 32.00 |
| Shank Height (Decimal Inch) | 1.2600 |
| Insert Seat Size | 5 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 4.45 |
| Insert Width (Decimal Inch) | 0.1750 |
| Head Height (mm) | 41.50 |
| Head Height (Decimal Inch) | 1.6340 |
| Head Length (mm) | 53.00 |
| Head Length (Decimal Inch) | 2.0870 |
| Shank Length (mm) | 117.00 |
| Shank Length (Decimal Inch) | 4.6060 |
| Blade Width (mm) | 4.45 |
| Blade Width (Decimal Inch) | 0.1750 |
| Complete Insert Compatibility | EG0500M05P04 |
