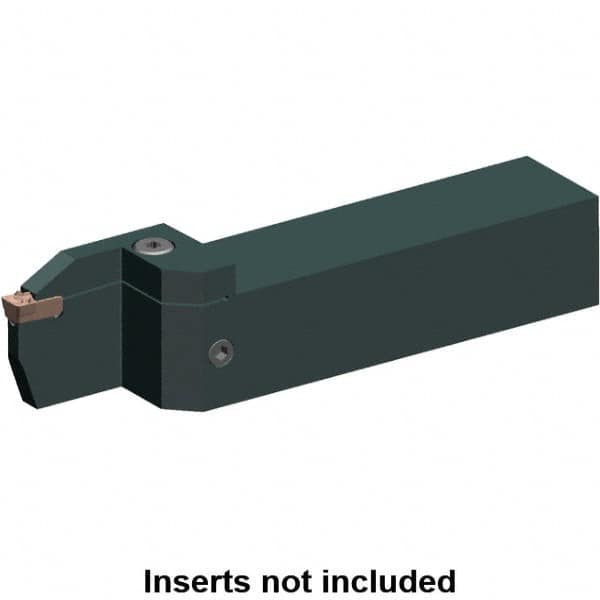

Kennametal - Right Hand Cut, 80mm Max Workpc Diam, EG0800M08P08 Insert, Indexable Cutoff Toolholder - 40mm Max Depth of Cut, 40mm Shank Width, 40mm Shank Height, 200mm OAL
Item #: 54319462
Brand: Kennametal
Model #: 5954241
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1500 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0800M08P08 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5750 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5750 |
| Insert Seat Size | 8 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 7.00 |
| Insert Width (Decimal Inch) | 0.2760 |
| Head Height (mm) | 51.00 |
| Head Height (Decimal Inch) | 2.0080 |
| Head Length (mm) | 63.00 |
| Head Length (Decimal Inch) | 2.4800 |
| Shank Length (mm) | 137.00 |
| Shank Length (Decimal Inch) | 5.3940 |
| Blade Width (mm) | 7.00 |
| Blade Width (Decimal Inch) | 0.2760 |
| Complete Insert Compatibility | EG0800M08P08 |
