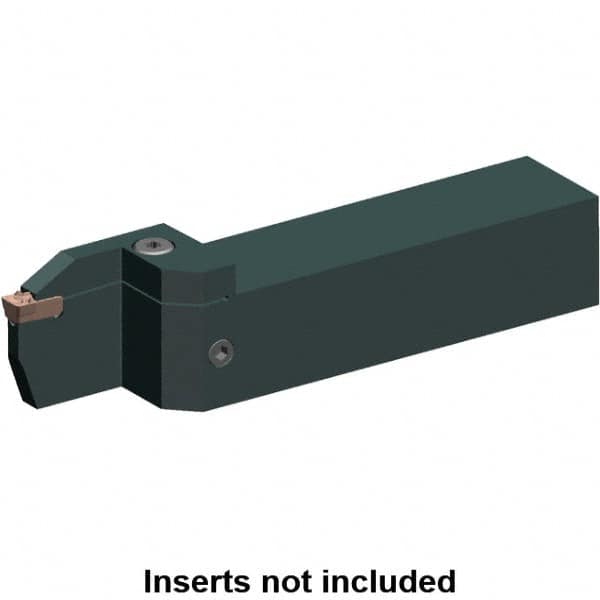

Kennametal - Left Hand Cut, 32mm Max Workpc Diam, EG0600M06P04 Insert, Indexable Cutoff Toolholder - 16mm Max Depth of Cut, 1" Shank Width, 1" Shank Height, 6" OAL
Item #: 54319173
Brand: Kennametal
Model #: 5955464
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Maximum Workpiece Diameter (mm) | 32.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.2600 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG0600M06P04 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (mm) | 25.40 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (mm) | 25.40 |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Insert Seat Size | 6 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 5.25 |
| Insert Width (Decimal Inch) | 0.2070 |
| Head Height (mm) | 33.90 |
| Head Height (Decimal Inch) | 1.3350 |
| Head Length (mm) | 37.00 |
| Head Length (Decimal Inch) | 1.4570 |
| Shank Length (mm) | 115.40 |
| Shank Length (Decimal Inch) | 4.5430 |
| Blade Width (mm) | 5.25 |
| Blade Width (Decimal Inch) | 0.2070 |
| Complete Insert Compatibility | EG0600M06P04 |
