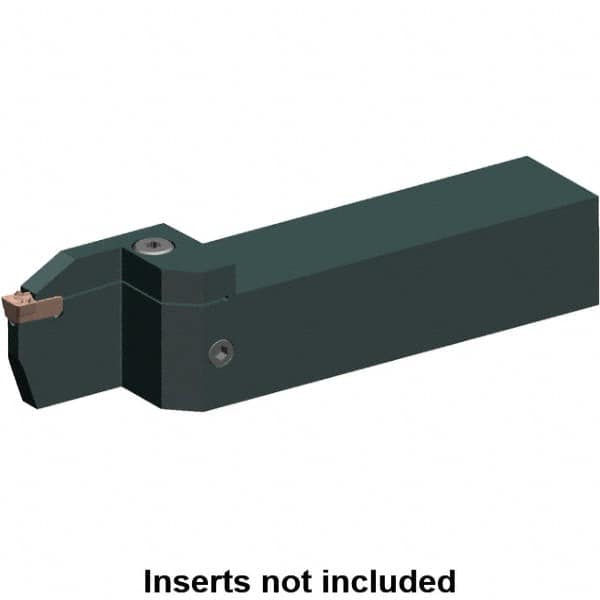

Kennametal - Left Hand Cut, 64mm Max Workpc Diam, EG1000M10P08 Insert, Indexable Cutoff Toolholder - 32mm Max Depth of Cut, 1-1/4" Shank Width, 1-1/4" Shank Height, 6" OAL
Item #: 54319090
Brand: Kennametal
Model #: 5955473
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 32.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.2600 |
| Maximum Workpiece Diameter (mm) | 64.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 2.5200 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG1000M10P08 |
| Overall Length (mm) | 152.40 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Shank Width/Diameter (mm) | 31.75 |
| Shank Width/Diameter (Inch) | 1-1/4 |
| Shank Width/Diameter (Decimal Inch) | 1.2500 |
| Shank Height (mm) | 31.75 |
| Shank Height (Inch) | 1-1/4 |
| Shank Height (Decimal Inch) | 1.2500 |
| Insert Seat Size | 10 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 8.30 |
| Insert Width (Decimal Inch) | 0.3270 |
| Head Height (mm) | 43.00 |
| Head Height (Decimal Inch) | 1.6930 |
| Head Length (mm) | 55.00 |
| Head Length (Decimal Inch) | 2.1650 |
| Shank Length (mm) | 97.40 |
| Shank Length (Decimal Inch) | 3.8350 |
| Blade Width (mm) | 8.30 |
| Blade Width (Decimal Inch) | 0.3270 |
| Complete Insert Compatibility | EG1000M10P08 |
