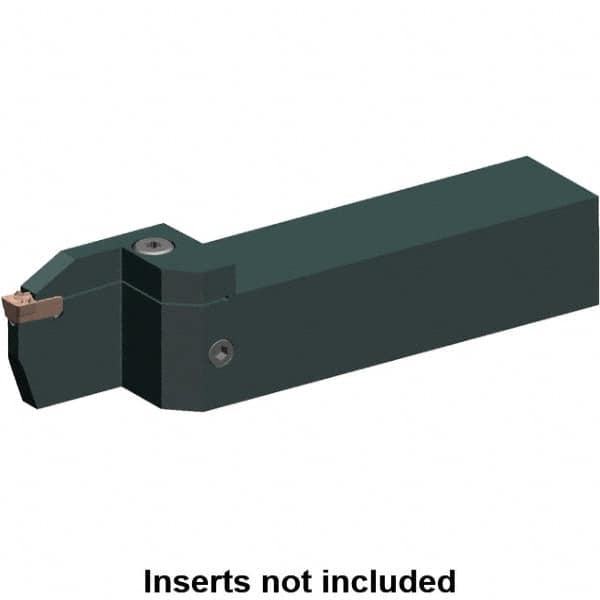

Kennametal - Left Hand Cut, 80mm Max Workpc Diam, EG1000M10P08 Insert, Indexable Cutoff Toolholder - 40mm Max Depth of Cut, 1-1/2" Shank Width, 1-1/2" Shank Height, 7" OAL
Item #: 54319082
Brand: Kennametal
Model #: 5955474
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 40.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Maximum Workpiece Diameter (mm) | 80.00 |
| Maximum Workpiece Diameter (Decimal Inch) | 3.1500 |
| Series | Beyond Evolution |
| Toolholder Style | EVSM |
| Insert Compatibility | EG1000M10P08 |
| Overall Length (mm) | 177.80 |
| Overall Length (Inch) | 7 |
| Overall Length (Decimal Inch) | 7.0000 |
| Shank Width/Diameter (mm) | 38.10 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Height (mm) | 38.10 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Insert Seat Size | 10 |
| Insert Holding Method | Clamp |
| Through Coolant | Yes |
| Insert Width (mm) | 8.30 |
| Insert Width (Decimal Inch) | 0.3270 |
| Head Height (mm) | 49.35 |
| Head Height (Decimal Inch) | 1.9430 |
| Head Length (mm) | 63.00 |
| Head Length (Decimal Inch) | 2.4800 |
| Shank Length (mm) | 114.80 |
| Shank Length (Decimal Inch) | 4.5200 |
| Blade Width (mm) | 8.30 |
| Blade Width (Decimal Inch) | 0.3270 |
| Complete Insert Compatibility | EG1000M10P08 |
