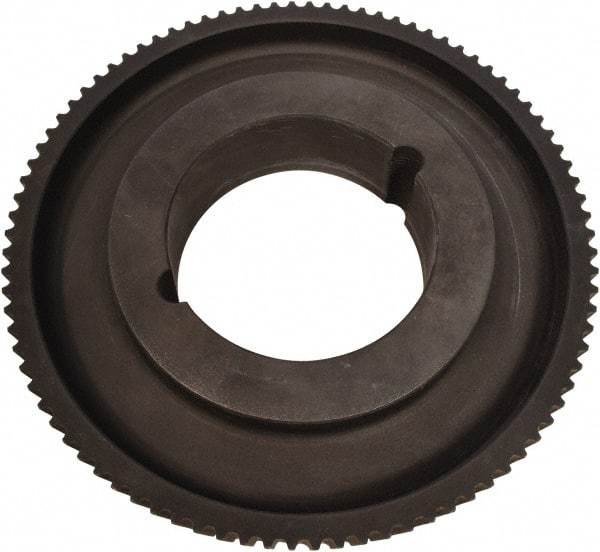

Continental ContiTech - 56 Tooth, 134" Inside x 141" Outside Diam, Synchronous Belt Drive Sprocket Timing Belt Pulley - 1.417" Belt Width, 8" Pitch Diam, Cast Iron, 2517TL Bushing
Item #: 54288543
Brand: Continental ContiTech
Model #: 20296088
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pulley Type | Synchronous Belt Drive Sprocket |
| Number of Teeth | 56 |
| Inside Diameter (mm) | 134.0000 |
| Outside Diameter (mm) | 141.0000 |
| Belt Width (Decimal Inch) | 1.417 |
| Belt Width (mm) | 36.00 |
| Pitch Diameter (mm) | 8.000 |
| Bushing Type | 2517TL |
| Material | Cast Iron |
| Flange Diameter (Decimal Inch) | 5.8661 |
