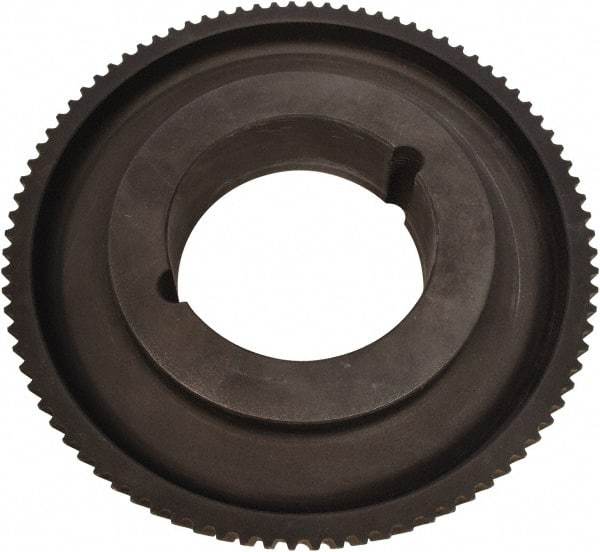

Continental ContiTech - 50 Tooth, 155" Inside x 220.02" Outside Diam, Synchronous Belt Drive Sprocket Timing Belt Pulley - 0.787" Belt Width, 14" Pitch Diam, Cast Iron, 3020TL Bushing
Item #: 54288402
Brand: Continental ContiTech
Model #: 20296128
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Pulley Type | Synchronous Belt Drive Sprocket |
| Number of Teeth | 50 |
| Inside Diameter (mm) | 155.0000 |
| Outside Diameter (mm) | 220.0200 |
| Belt Width (Decimal Inch) | 0.787 |
| Belt Width (mm) | 20.00 |
| Pitch Diameter (mm) | 14.000 |
| Bushing Type | 3020TL |
| Material | Cast Iron |
| Flange Diameter (Decimal Inch) | 9.1339 |
