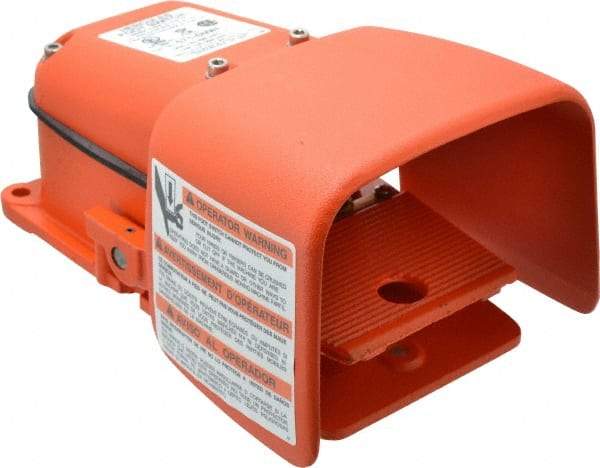

LINEMASTER - 1 Treadle, 20 Amp, 1 hp, Maintained (MA), SPDT, Electric Foot Switch - 13, 2 & 4 NEMA Rated, IP56, Cast Iron, 9" Long x 5.88" Wide x 4-1/2" High
Item #: 54097126
Brand: LINEMASTER
Model #: 571-DWH
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Actuator Type | Electric |
| Operation Type | Maintained (MA) |
| Number of Treadles | 1 |
| Contact Configuration | NO/NC |
| Contact Form | SPDT |
| NEMA Rating | 13; 2; 4 |
| Switch Color | Orange |
| Horsepower | 1 |
| Amperage | 20 |
| Terminal Type | Screw |
| Body Material | Cast Iron |
| Ingress Protection Rating | IP56 |
| Overall Length (Decimal Inch) | 9.0000 |
| Overall Height (Inch) | 4-1/2 |
| Overall Height (Decimal Inch) | 4.3700 |
| Overall Width (Decimal Inch) | 5.8800 |
| Standards Met | CSA Certified; EN 60529; RoHS Compliant; UL Listed |
