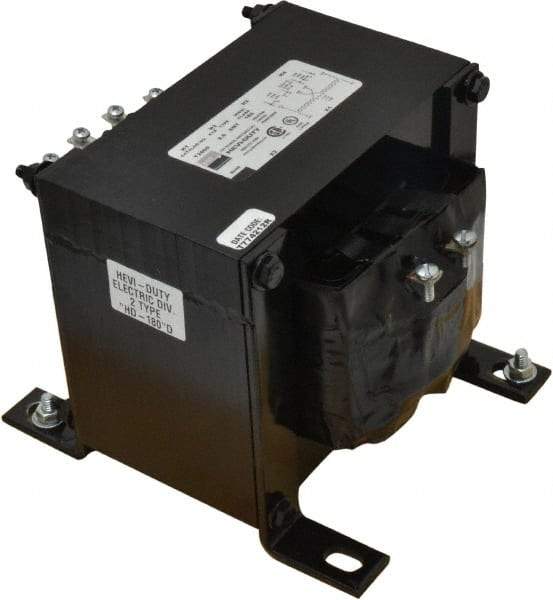

Sola/Hevi-Duty - 1 Phase, 2 kVA, Control Transformer - 2 Input, 1 Output Winding, 60 Hz, 9.13 Inch Deep x 6-1/4 Inch High, 239°F Temp Rise
Item #: 54074356
Brand: Sola/Hevi-Duty
Model #: T2000
Exact Tooling IR#: 04
Features and Benefits
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Power Rating (VA) | 2000 |
| Power Rating (kVA) | 2.00 |
| Input Voltage | 240 x 480 V |
| Output Voltage | 120 V |
| Fuse Status | NonFused |
| Number of Phases | 1 |
| Number of Input Windings | 2 |
| Number of Output Windings | 1 |
| Temperature Rise (F) | 239 |
| Frequency Rating (Hz) | 60 |
| Overall Width (Decimal Inch) | 6-3/4 |
| Overall Height (Decimal Inch) | 6-1/4 |
| Overall Depth (Decimal Inch) | 9.1300 |
| Standards Met | ANSI; CSA File LR-14328-12 Certified; NEMA; NMTBA & JIC; UL Listed File E77014 |
