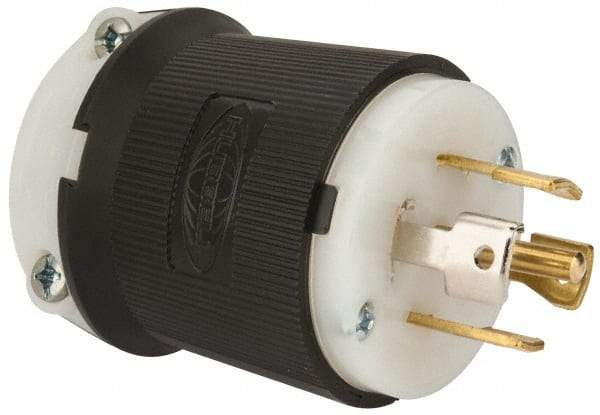

Hubbell Wiring Device-Kellems - 277/480 VAC, 30 Amp, L22-30P Configuration, Industrial Grade, Self Grounding Plug - 3 Phase, 4 Poles, IP20, 0.35 to 1.15 Inch Cord Diameter
Item #: 54035225
Brand: Hubbell Wiring Device-Kellems
Model #: HBL2821
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connector Type | Plug |
| Grade | Industrial |
| NEMA Configuration | L22-30P |
| Amperage | 30 |
| Voltage | 277/480 VAC |
| Number of Poles | 4 |
| Number of Wires | 5 |
| Color | Black/White |
| Resistance Features | Impact Resistant |
| Maximum Cord Diameter (Decimal Inch) | 1.1500 |
| Maximum Cord Diameter (mm) | 29 |
| Minimum Cord Diameter (mm) | 9 |
| Minimum Cord Diameter (Decimal Inch) | 0.3500 |
| Number of Phases | 3 |
| Grounding Style | Self-Grounding |
| Ingress Protection Rating | IP20 |
| Material | Nylon |
| Standards Met | CSA Certified; UL Federal Specification; UL Listed |
