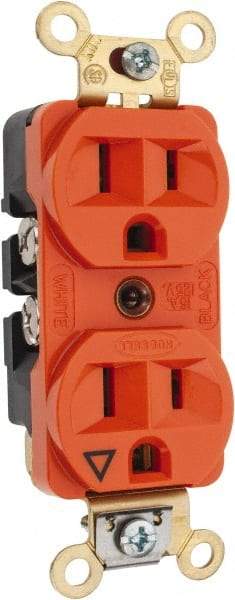

Hubbell Wiring Device-Kellems - 125 VAC, 15 Amp, 5-15R NEMA Configuration, Orange, Specification Grade, Isolated Ground Duplex Receptacle - 1 Phase, 2 Poles, 3 Wire, Flush Mount, Corrosion, Heat and Impact Resistant
Item #: 54032107
Brand: Hubbell Wiring Device-Kellems
Model #: IG5262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Receptacle Type | Duplex Receptacle |
| Grade | Specification |
| Color | Orange |
| NEMA Configuration | 5-15R |
| Amperage | 15 |
| Voltage | 125 VAC |
| Wiring Method | Back; Side |
| Flange Style | No Flange |
| Resistance Features | Corrosion Resistant; Heat Resistant; Impact Resistant |
| Number of Phases | 1 |
| Grounding Style | Isolated Ground |
| Number of Wires | 3 |
| Number of Poles | 2 |
| Mounting Type | Flush Mount |
| Material | Nylon |
| Standards Met | CSA C22.2 No. 42 File 285; CSA Certified; Federal Specification W-C-596; NEMA WD-6; UL Listed; UL Listed 498 File E2186 |
