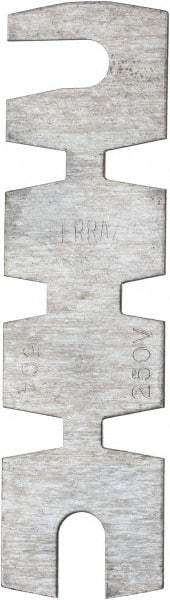

Ferraz Shawmut - 250 VAC, 150 Amp, Fast-Acting Renewable Fuse - Fuse Holder Mount, 7-1/8" OAL, 10 at AC kA Rating, 1-9/16" Diam
Item #: 54017413
Brand: Ferraz Shawmut
Model #: RL150
Exact Tooling IR#: 04
Features and Benefits
Renewable fuses have replaceable fuse elements, allowing the fuse body to be reused if not damaged after an overload or short circuit. They are made to Class H standards. Renewable fuses and links are not recommended for new applications.
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | Renewable |
| Fuse Class | H |
| Amperage | 150 |
| Voltage | 250 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 181 |
| Overall Length (Inch) | 7-1/8 |
| Overall Length (Decimal Inch) | 7.13 |
| Overall Diameter (mm) | 40.00 |
| Overall Diameter (Inch) | 1-9/16 |
| Overall Diameter (Decimal Inch) | 1-9/16 |
| Mounting Type | Fuse Holder |
| Reusability | Renewable |
| Interrupting Rating (kA) | 10 @ AC |
| Standards Met | CSA C22.2 No. 248.7 Certified; UL Listed 248-7 File E2137 |
