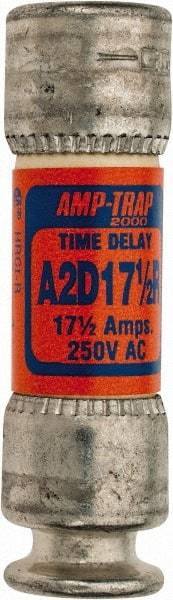

Ferraz Shawmut - 250 VAC/VDC, 17.5 Amp, Time Delay General Purpose Fuse - Clip Mount, 51mm OAL, 100 at DC, 200 at AC kA Rating, 9/16" Diam
Item #: 54015581
Brand: Ferraz Shawmut
Model #: A2D17-1/2R
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Time delay fuses, also known as duel-element fuses, are designed to allow for a surge in electricity during a short time before overloading or shorting out. They can protect equipment from overload and allow for greater starting amperage.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | RK1 |
| Amperage | 17.50 |
| Voltage | 250 VAC/VDC |
| Fuse Timing | Time Delay |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 51 |
| Overall Length (Decimal Inch) | 2.0000 |
| Overall Diameter (mm) | 14.00 |
| Overall Diameter (Inch) | 9/16 |
| Overall Diameter (Decimal Inch) | 0.5600 |
| Material | Fiberglass; Polyester |
| Mounting Type | Clip |
| Indicating Information | Indicating |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC |
| Standards Met | CSA C22.2 No. 248.12 Certified; UL 248; UL Listed 248-12 File E2137 |
