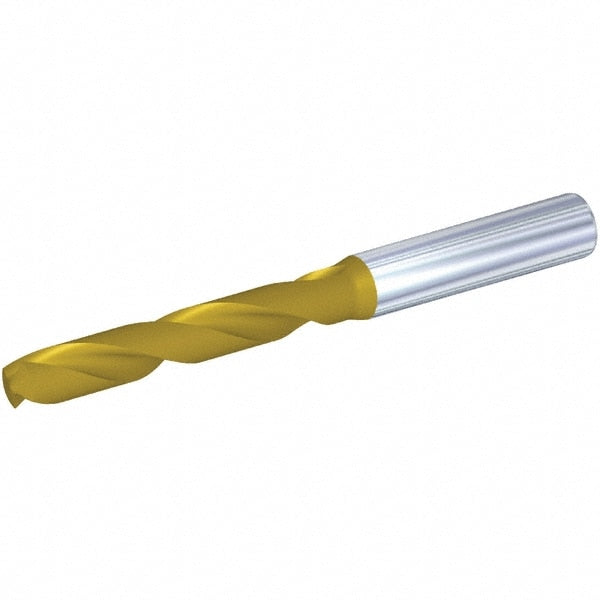

Jobber Drill: 6.90 mm Dia, 140 deg Point, Solid Carbide
Item #: 77371524
Brand: Kennametal
Model #: 4150720
Product Specifications
| Drill Bit Size (mm) | 6.90 |
| Drill Bit Size (Decimal Inch) | 0.2717 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Number of Flutes | 2 |
| Overall Length (mm) | 91.00 |
| Overall Length (Decimal Inch) | 3.5827 |
| Flute Length (mm) | 53.00 |
| Flute Length (Decimal Inch) | 2.0866 |
| Flute By Diameter Ratio | 6xD |
| Shank Diameter (mm) | 8 |
| Maximum Drilling Depth (mm) | 43.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 1.16 |
| Shank Type | Straight |
| Drill Bit Size Range (Decimal Inch) | 0.2500 - 0.3000 |
| Drill Bit Size Range (mm) | 6.00 - 7.00 |
| UNSPSC Code | 23241634 |
| Country of Origin | Germany |
