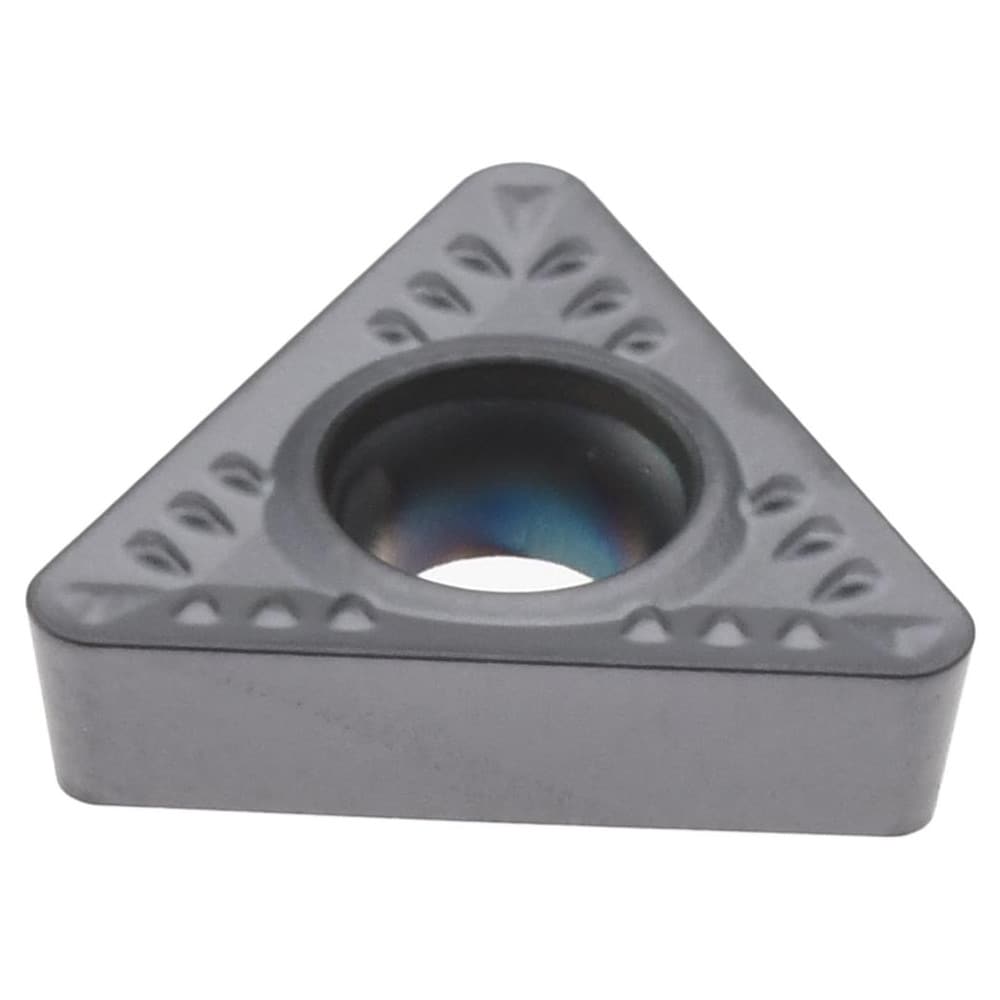

Turning Insert: TCMT16T312WM+ ACP25M, Carbide
Item #: 75356477
Brand: Accupro
Model #: 75356477
Product Specifications
| ANSI Insert Code | TCMT32.53 |
| ISO Insert Code | TCMT16T312 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | TCMT16T312 |
| Standards | ANSI Code: TCMT32.53 |
| Chip Breaker | WM+ |
| ANSI Size Code | 32.53 |
| ISO Size Code | 16T312 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| ANSI Insert Code | TCMT32.53 |
| ISO Insert Code | TCMT16T312 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 60 |
| Manufacturer Grade | ACP25M |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | TCMT16T312 |
| Standards | ANSI Code: TCMT32.53 |
| Chip Breaker | WM+ |
| ANSI Size Code | 32.53 |
| ISO Size Code | 16T312 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16 |
| MSC Part # | 75356477 |
| Mfr Part # | 75356477 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
