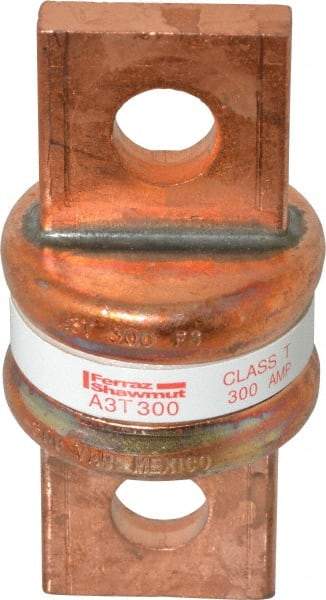

Ferraz Shawmut - 160 VDC, 300 VAC, 300 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 2-3/4" OAL, 200 at AC, 50 at DC kA Rating, 1-21/64" Diam - Americas Industrial Supply

Ferraz Shawmut - 160 VDC, 300 VAC, 300 Amp, Fast-Acting General Purpose Fuse - Bolt-on Mount, 2-3/4" OAL, 200 at AC, 50 at DC kA Rating, 1-21/64" Diam


Item #: 54007240
Brand: Ferraz Shawmut
Model #: A3T300
Exact Tooling IR#: 04

Features and Benefits

General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
Product Specifications
Fuse Type General Purpose
Fuse Class T
Amperage 300
Voltage 160 VDC; 300 VAC
Fuse Timing Fast-Acting
Fuse Body Type Cylindrical
Overall Length (mm) 69.80
Overall Length (Inch) 2-3/4
Overall Length (Decimal Inch) 2.7500
Overall Diameter (mm) 33.80
Overall Diameter (Inch) 1-21/64
Overall Diameter (Decimal Inch) 1.3300
Material GMG
Mounting Type Bolt-on
Rejection Setting Rejecting
Interrupting Rating (kA) 200 @ AC; 50 @ DC
Standards Met CSA C22.2 No. 248.15 Certified; UL 248; UL Listed 248-15 File E2137
$119.35
