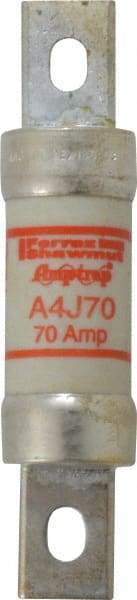

Ferraz Shawmut - 300 VDC, 600 VAC, 70 Amp, Fast-Acting General Purpose Fuse - Clip Mount, 4-5/8" OAL, 100 at DC, 200 at AC kA Rating, 1-1/8" Diam
Item #: 54004130
Brand: Ferraz Shawmut
Model #: A4J70
Exact Tooling IR#: 04
Features and Benefits
General purpose or class H non-renewable cartridge fuse have a single element and two cylindrical end caps designed for disposable, one-time use
Fast acting fuses refer to the amount of time that a fuse can withstand a current before overload. They are used to protect sensitive equipment.
| Product Specifications | |
|---|---|
| Fuse Type | General Purpose |
| Fuse Class | J |
| Amperage | 70 |
| Voltage | 300 VDC; 600 VAC |
| Fuse Timing | Fast-Acting |
| Fuse Body Type | Cylindrical |
| Overall Length (mm) | 117-1/2 |
| Overall Length (Inch) | 4-5/8 |
| Overall Length (Decimal Inch) | 4.6300 |
| Overall Diameter (mm) | 29.00 |
| Overall Diameter (Inch) | 1-1/8 |
| Material | Fiberglass; GMG; Polyester |
| Mounting Type | Clip |
| Rejection Setting | Rejecting |
| Interrupting Rating (kA) | 100 @ DC; 200 @ AC |
| Standards Met | CSA C22.2 No. 248.8 Certified; IEC 269-2-1; UL 248; UL Listed 248-8 File E2137 |
