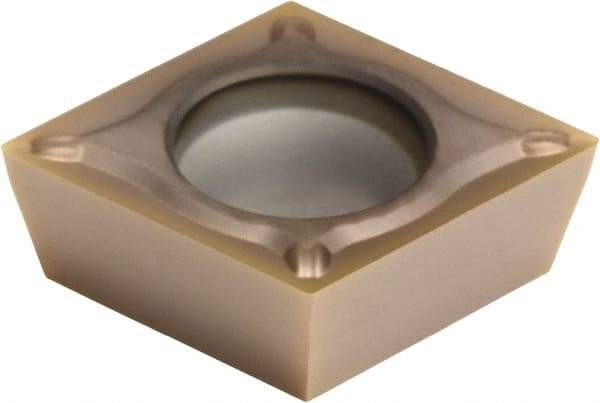

Sumitomo - CPGT32.50.5 Grade AC520U Carbide Turning Insert - TiAlN/AlCrN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 0.0078" Corner Radius
Item #: 53986329
Brand: Sumitomo
Model #: 10HWW0N
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CPGT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0078 |
| Manufacturer's Grade | AC520U |
| Coating | TiAlN/AlCrN |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Proprietary Coating Designation | Super ZX |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
