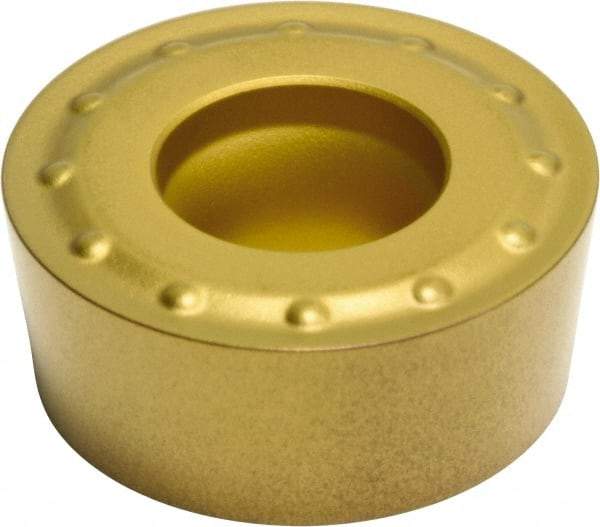

Sumitomo - RCMT120400 RX Grade AC830P Carbide Turning Insert - Al2O3 Finish, Round, 12mm Inscr Circle, 3/16" Thick
Item #: 53981049
Brand: Sumitomo
Model #: 19RBBXR
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMT |
| Insert Size | 120400 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.00 |
| Inscribed Circle (Decimal Inch) | 0.4724 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | AC830P |
| Coating | Al2O3 |
| Chip Breaker | RX |
| Hole Diameter (Decimal Inch) | 0.1654 |
| Rake | Negative |
| Rake Angle | -5 |
| Relief Angle | 7 |
| Insert Holding Method | Screw |
| Shape | Round |
