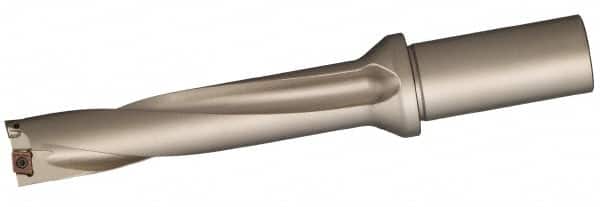

Sumitomo - 164mm Max Drill Depth, 5xD, 32mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 53973566
Brand: Sumitomo
Model #: 2A00378
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 32.00 |
| Drill Diameter (Decimal Inch) | 1.1220 |
| Maximum Drill Depth (mm) | 164.00 |
| Maximum Drill Depth (Decimal Inch) | 6.4567 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 248.00 |
| Overall Length/Projection (Decimal Inch) | 9.7638 |
| Insert Compatibility | WDXT 094008 |
| Flute Length (mm) | 164.00 |
| Flute Length (Decimal Inch) | 6.4567 |
| Body Length (Decimal Inch) | 7.4016 |
| Body Length (mm) | 188.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Collar Diameter (mm) | 54.00 |
| Collar Diameter (Decimal Inch) | 2.1260 |
| Series | SumiDrill |
