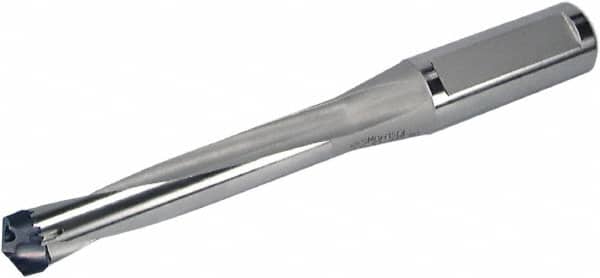

Sumitomo - 20.51 to 21.5mm Diam, 5xD, 119.5mm Max Depth, 25mm Shank Diam, 140.5mm Flute, 196.5mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53972527
Brand: Sumitomo
Model #: 5L00025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 20.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.8075 |
| Maximum Drill Diameter (mm) | 21.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.8465 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 4.7047 |
| Maximum Drill Depth (mm) | 119.50 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 140.50 |
| Flute Length (Decimal Inch) | 5.5315 |
| Body Length (mm) | 140.50 |
| Body Length (Decimal Inch) | 5.5315 |
| Overall Length (mm) | 196.50 |
| Overall Length (Decimal Inch) | 7.7362 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
