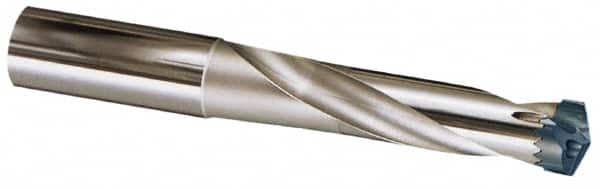

Sumitomo - 20.51 to 21.5mm Diam, 3xD, 76.5mm Max Depth, 25mm Shank Diam, 100.5mm Flute, 156.5mm OAL, Replaceable Tip Drill - SMDT Insert, SMDH Toolholder, Series SMD
Item #: 53972519
Brand: Sumitomo
Model #: 5L00008
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SMD |
| Minimum Drill Diameter (mm) | 20.51 |
| Minimum Drill Diameter (Decimal Inch) | 0.8075 |
| Maximum Drill Diameter (mm) | 21.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.8465 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 3.0118 |
| Maximum Drill Depth (mm) | 76.50 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Style | SMDT |
| Toolholder Style | SMDH |
| Through Coolant | Through Coolant |
| Flute Length (mm) | 100.50 |
| Flute Length (Decimal Inch) | 3.9567 |
| Body Length (mm) | 100.50 |
| Body Length (Decimal Inch) | 3.9567 |
| Overall Length (mm) | 156.50 |
| Overall Length (Decimal Inch) | 6.1614 |
| Toolholder Material | Steel |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
