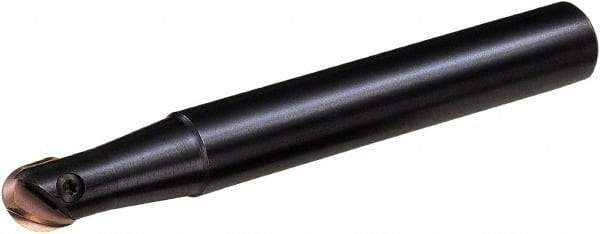

Sumitomo - 3/4" Cut Diam, 0.572" Max Depth of Cut, 1" Shank Diam, 7.546" OAL, Indexable Ball Nose End Mill - 5.265" Head Length, Straight Shank, WBMF Toolholder, ZPGU3S Insert
Item #: 53967147
Brand: Sumitomo
Model #: 2900W49
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.5720 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | ZPGU3S |
| Toolholder Style | WBMF |
| Series | WaveMill |
| Overall Length (Decimal Inch) | 7.5460 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | Yes |
| Tapered Neck | Yes |
| Head Length (Decimal Inch) | 5.2650 |
