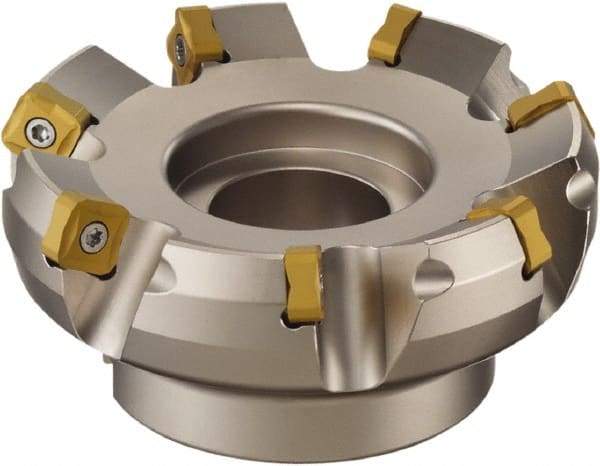

Sumitomo - 6" Cut Diam, 1-1/2" Arbor Hole, 0.314" Max Depth of Cut, 25° Indexable Chamfer & Angle Face Mill - 12 Inserts, SNMT 1205 Insert, Right Hand Cut, Series SumiMill
Item #: 53966404
Brand: Sumitomo
Model #: 2200W0T
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 25 |
| Overall Height (Decimal Inch) | 2.5000 |
| Insert Compatibility | SNMT 1205 |
| Series | SumiMill |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3140 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | DNXF |
| Hub Diameter (Decimal Inch) | 4.3800 |
| Keyway Width (Decimal Inch) | 0.6250 |
| Maximum Body Diameter (Decimal Inch) | 6.3030 |
| Cutting Direction | Right Hand |
| Pitch | Fine |
| Complete Insert Compatibility | SNMT 1205ZNEN |
