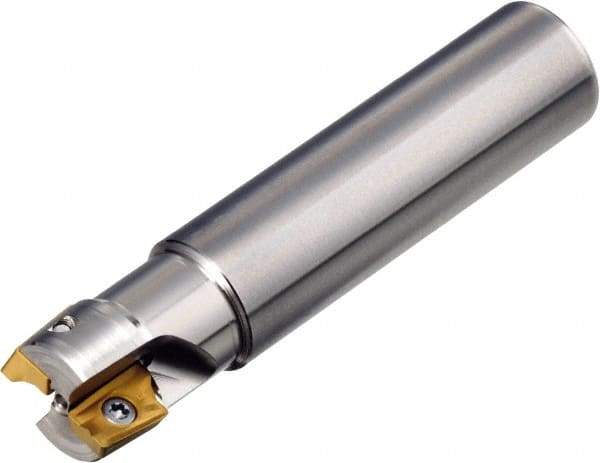

Sumitomo - 40mm Cut Diam, 32mm Shank Diam, 220mm OAL, Indexable Square Shoulder End Mill - AX.T 12350 Inserts, Cylindrical Shank, 90° Lead Angle, Through Coolant, Series WaveMill
Item #: 53963070
Brand: Sumitomo
Model #: 2900572
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Cutting Diameter (Decimal Inch) | 1.5748 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Overall Length/Projection (mm) | 220.00 |
| Overall Length/Projection (Decimal Inch) | 8.6614 |
| Lead Angle | 90 |
| Series | WaveMill |
| Through Coolant | Coolant Through |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | WEX |
| Head Length (mm) | 80.00 |
| Head Length (Decimal Inch) | 3.1496 |
| Weldon Flat | No |
| Insert Compatibility | AX.T 12350 |
| Shank Length (Decimal Inch) | 5.5118 |
| Shank Length (mm) | 140.00 |
